Flameproof
THNEX30
Features

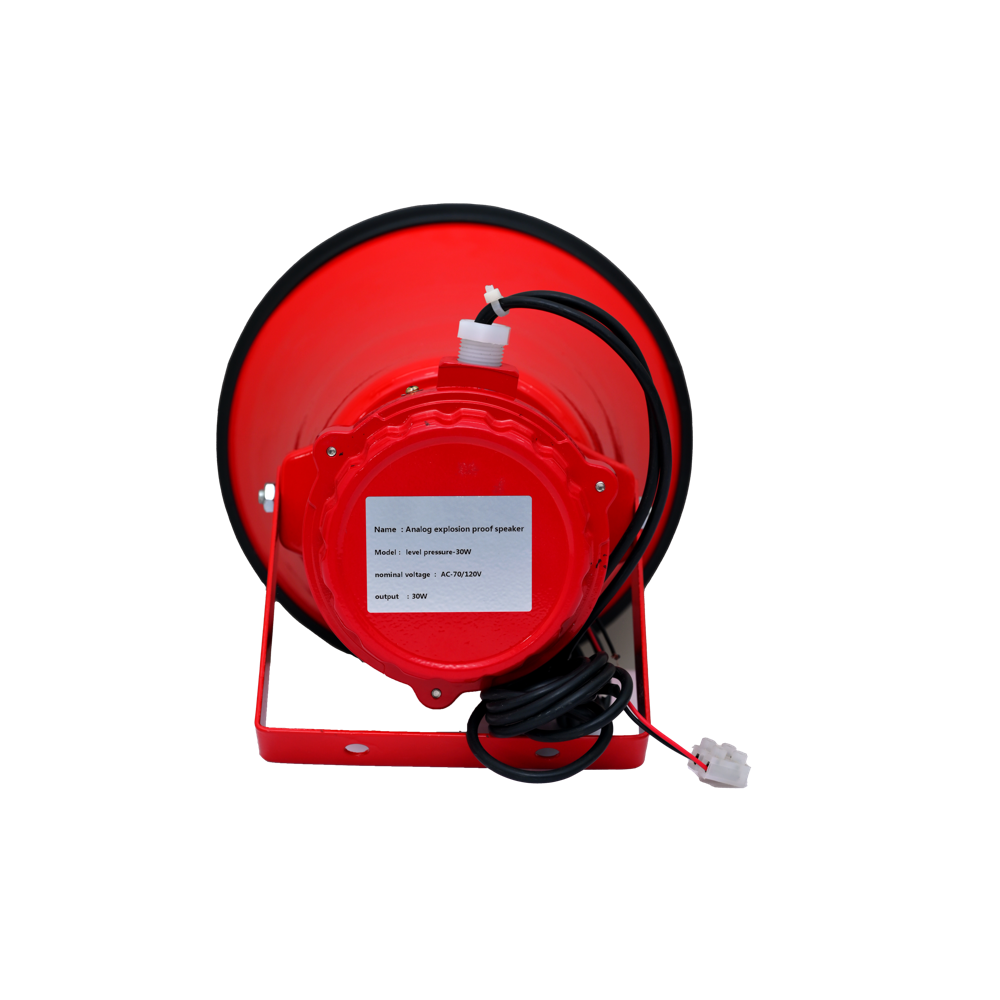

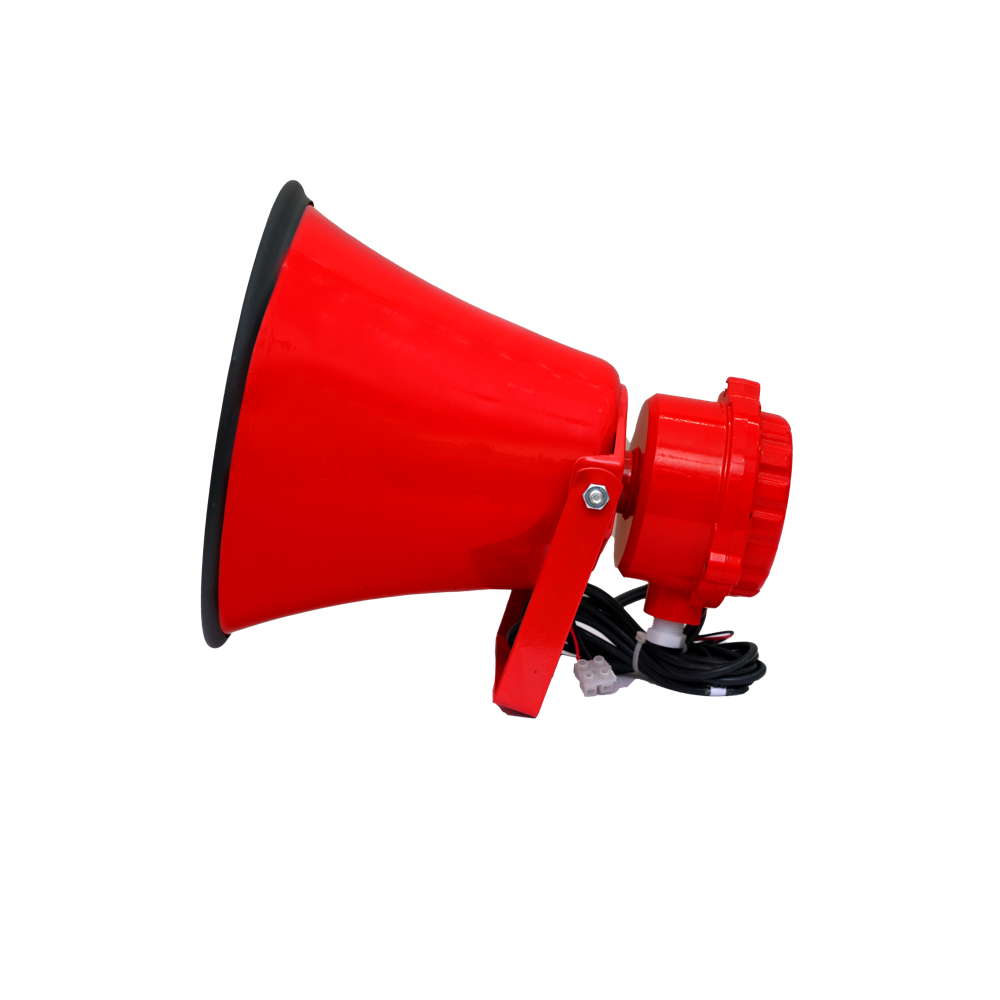

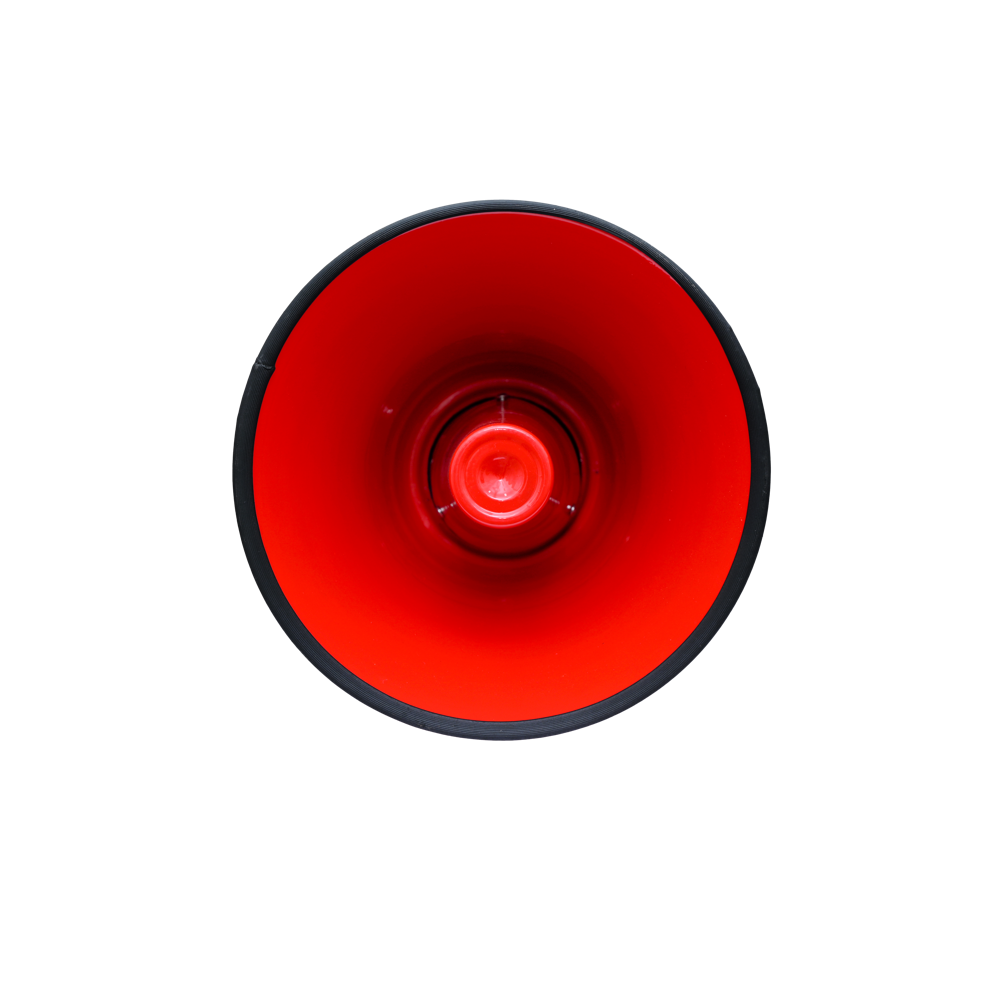

- The explosion-proof speaker adopts explosion-proof design and is an explosion-proof speaker. It is installed in public areas of flammable and explosive places to amplify and transmit long-distance sounds and alarms
- Outdoor UV-proof environmentally friendly powder coating will not fade when exposed to the sun for a long time.
- The explosion-proof speaker has a reasonable structural design, beautiful appearance, and effectively resists dust pollution and humid air.
- This product complies with GB / T3836.1-2021
- Explosive atmospheres : Part 1: General requirements for equipment", GB / T3836.2-2021 Part 2: Equipment protected by a partition enclosure "d"" standard, and dust explosion-proof GB / T 3836.31-2021 SECTION BC-BC Part 31: Equipment protected by a dust-proof enclosure "t"
Technical Specifications
| Key Features | Description |
|---|---|
| Protection Grade | IP65 |
| Installation Method | Seat Type |
| Rated Voltage | DC24V |
| Material | Aluminium Alloy |
| Sound Decibel | 120 dB |
| Introduction Port | G3/4 for Screw Pitch |
| Diameter Of Steel Pipe | DN20 |
