CLASS D IP

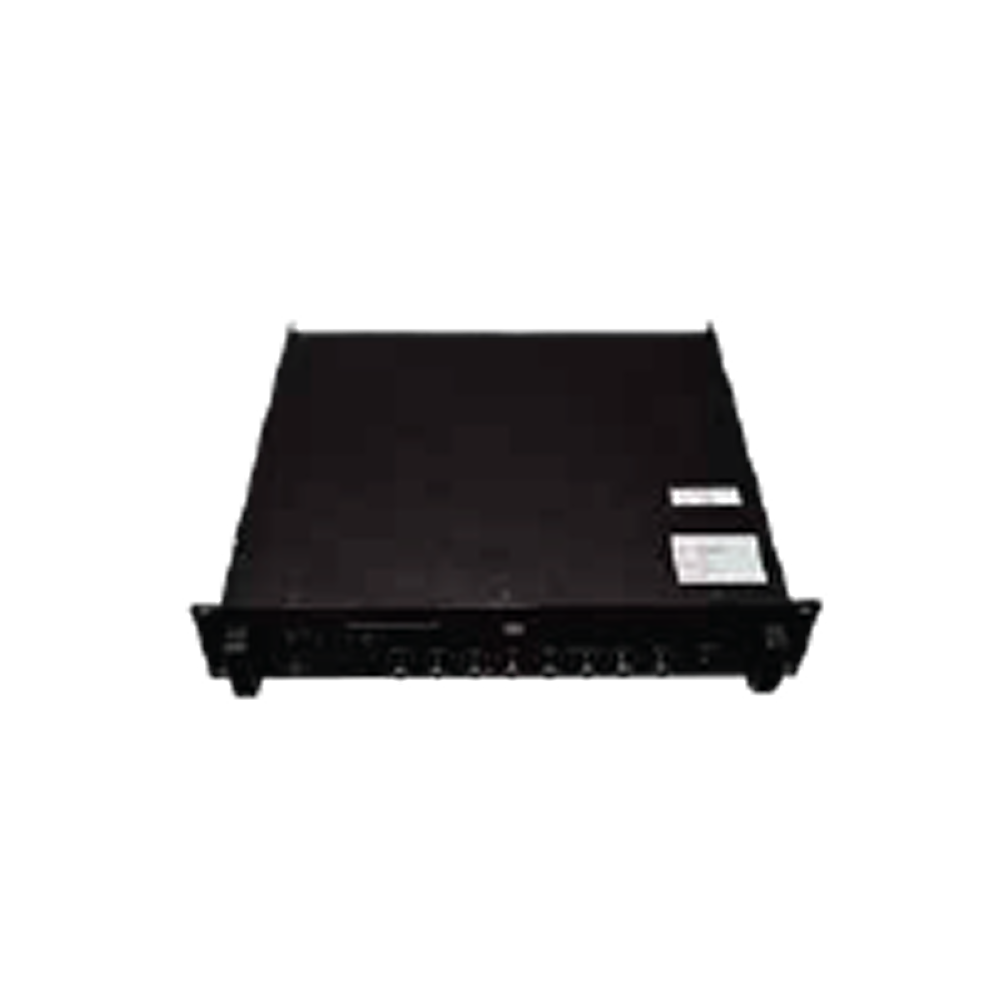

TYT-IP GF120W
Features
- One 10/100M RJ45 network switch interface is standard, supporting LAN and WAN
- ARM+DSP startup time is less than 1S
- Priority: EMC >MIC 1> MI C 2, MIC 3, AU X1 , AUX2
- 4 microphone and 2 auxiliary inputs
- 100V and 4-16 Ohms rear panel switchable speaker outputs
- Automatic mute function for paging and announcements
- Individual input gain controls with master volume control
- Mp3 / T UNER/ Bluetooth module with screen display
- Standard 1U 19-inch size with detachable mounting ears
- Speaker output short circuit protection
Technical Specifications
| Key Features | Description |
|---|---|
| Network | TCP/IP SIP Based |
| Weight | 10.8 Kg |
| Dimension | (H) 90mm X (W) 485 mm X (D) 400mm |
| Specification | TYT-IP GF120W |
| Rated Output Power | 120W |
| Output | 70V /100V with LMT Or Direct 4~16 Ohms Switchable |
| Frequency Response | 60 HZ to 16000HZ +/- 3dB |
| THD | Less then 0.5% at 1KHZ (1/3 Rated power) |
| S/n Ratio | Better then 80 db |
| Tone Controls | Bass 100 HZ , (+/-10dB) ,Treble 10KHZ (+/- 10dB) |
| Controls | All input MIC1,MIC2,MIC3 Network, Treble Bass |
| Indication | Power Clip |
| Protection | Current Limiter, Short circuit and thermal protection |
| Power Consumption | 170 Watt |
| Input Supply | 220~240V AC 50/60 HZ 24VDC |
